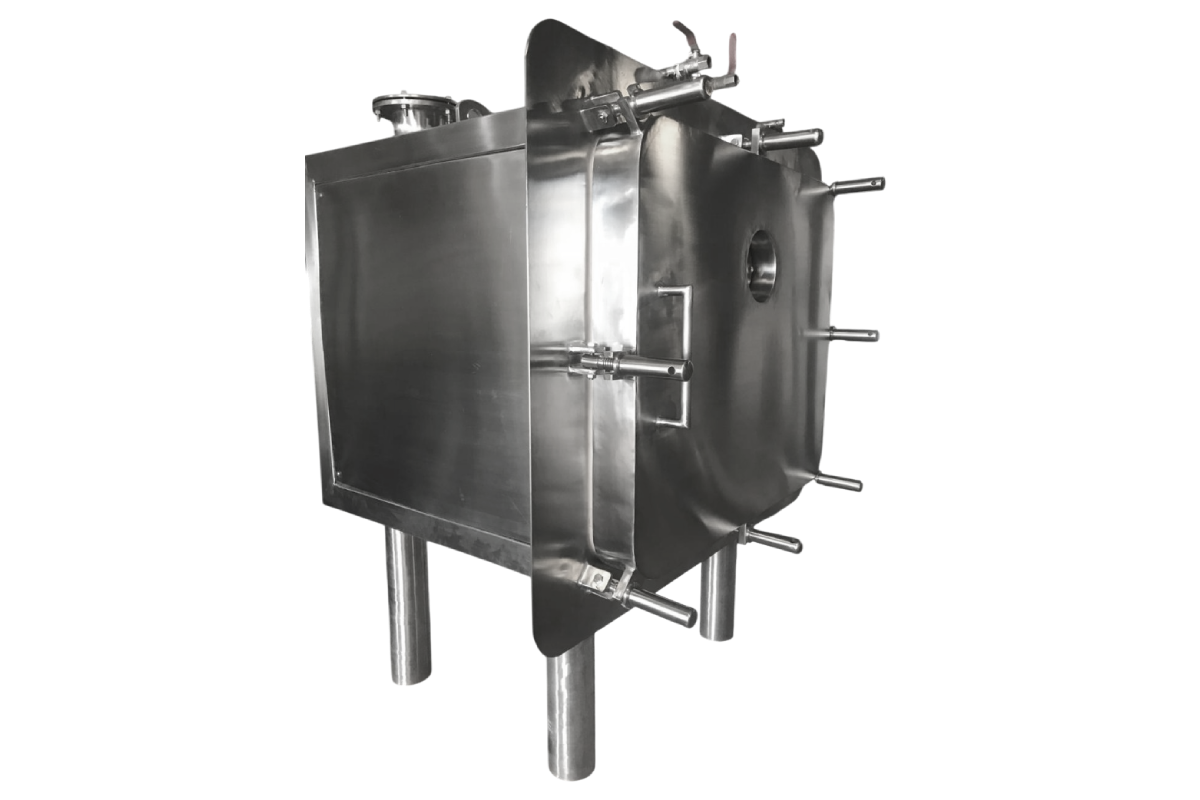

The Vacuum Tray Dryer is a precision-engineered drying system designed for efficient and uniform drying of heat-sensitive pharmaceutical materials under controlled vacuum conditions. By operating at reduced pressure, the system enables moisture removal at lower temperatures, thereby preserving product stability, potency, and quality.
Designed with a maximum operating temperature , the unit ensures optimal drying performance while maintaining strict process control.
Construction & Testing Standards
- Dryer shelves are hydro-tested at 5 kg/cm² in assembled condition to ensure structural integrity and operational safety.
- The vacuum chamber is leak-tested under full vacuum conditions to guarantee airtight performance and process reliability.
- Chamber insulation provided, including door for improved thermal efficiency.
- Skirting / wall panel provided along the body and chamber flange for hygienic and clean-room compatibility.
Solvent Recovery System
The system is equipped with a Shell & Tube Condenser and Receiver fabricated in SS 316/304, enabling efficient solvent recovery and improved process economy during drying operations.
Capacity & Models
- Available Models: GMP & Non-GMP
- Capacity Range: 3 Trays to 96 Trays
The wide capacity range supports laboratory-scale production as well as large-scale commercial pharmaceutical manufacturing.
Key Features
- Uniform heat distribution across shelves
- Robust vacuum-tight chamber design
- Energy-efficient drying process
- Durable stainless steel construction (SS 304 / SS 316 as required)
- Easy maintenance and operator-friendly controls
- Suitable for API, bulk drugs, chemicals, and intermediates
The Vacuum Tray Dryer is designed to meet stringent GMP and process compliance requirements, ensuring consistent batch quality, operational efficiency, and long-term reliability in pharmaceutical production environments.
